OT - Machete Modifications

Post by salvo »

Machete Modifications

I have wanted to give knife making a try, but get a little overwhelmed with the process, especially the forging part. So I figured I could try simply modifying an existing knife to get my feet wet. I was buying a few odds and ends (Disposable Tools) at Harbor Freight last week and stumbled upon the ugliest Machete I have ever seen! Figured it would be a great project, if I could make this homely beast good looking I would at least be on the path to making my own blades. So I spent the $5.50 and learned quite a bit from the project.

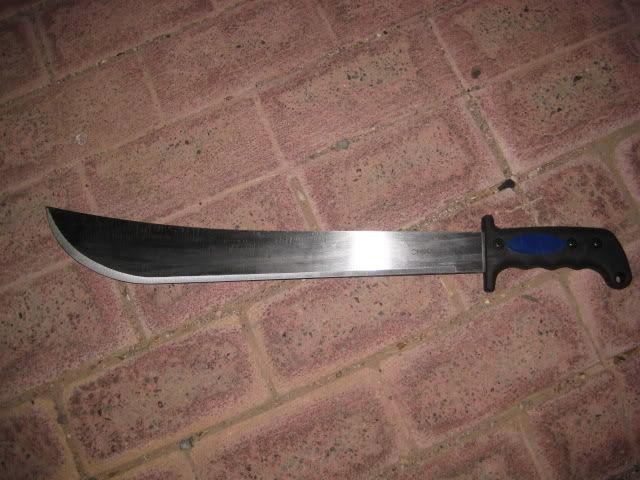

Here she is a Harbor Freight Machete, that grip looks like a real blister maker!

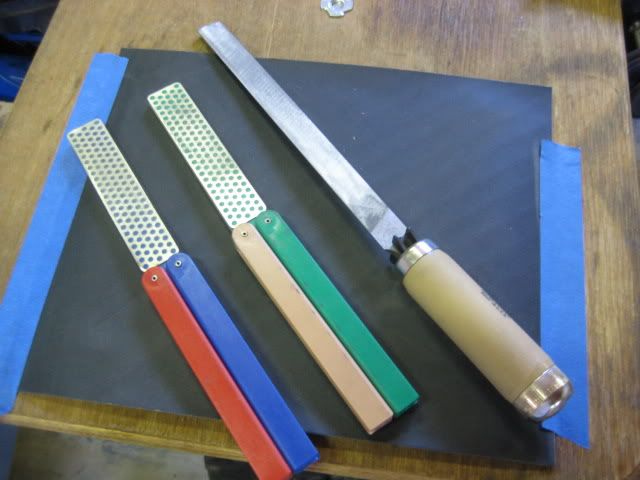

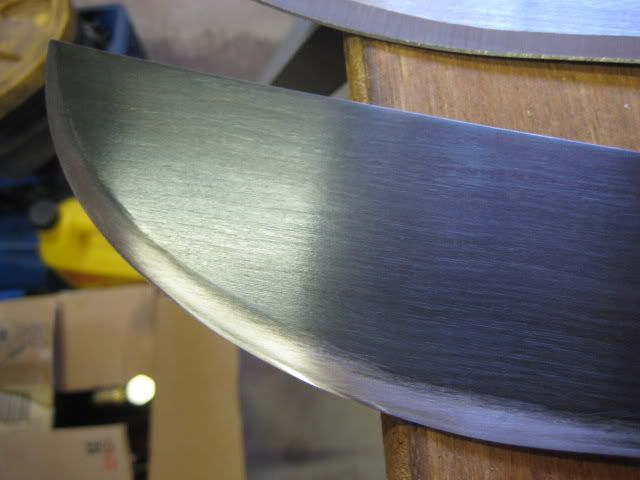

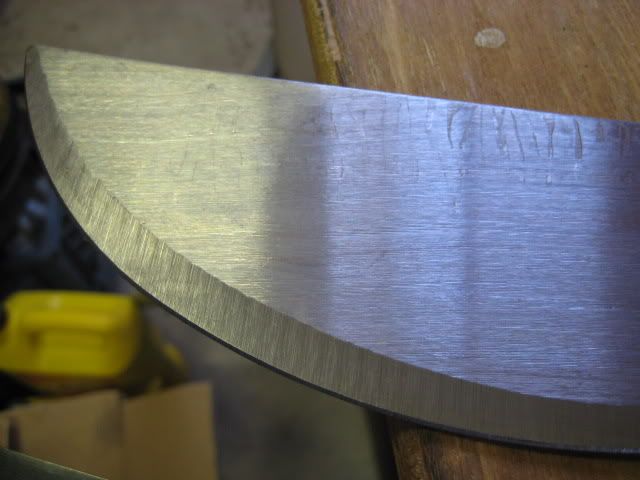

My first re profile job, I used a fine 8” file, DMT Diafolds from course to xx fine and finished up with fine sandpaper on a mouse pad. I cold blued the steel also. I also reshaped the spine slightly.

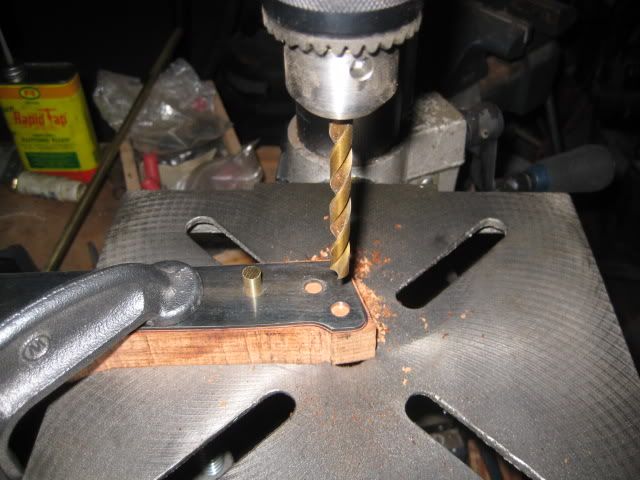

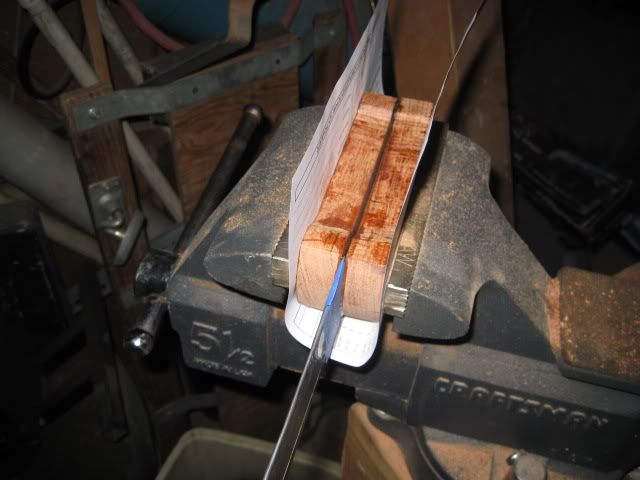

On to the scales, I had a nice chunk of hardwood in my woodpile, I think it is cherry or oak but not sure? Traced the tang, cut them out with a jig saw. The tang had holes in it; I only needed to drill one additional hole for the hollow pin I made for a wrist strap attachment point.

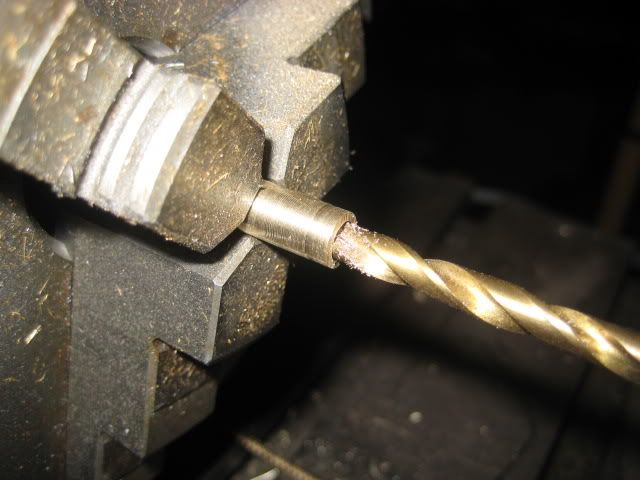

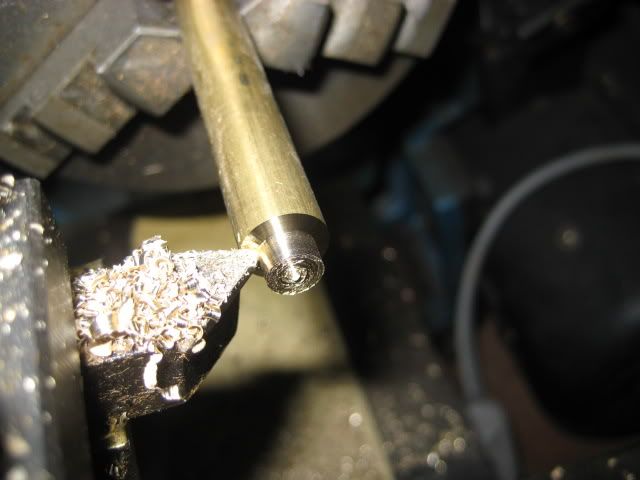

Turned 3 brass pins from some brass rod I had and drilled one hollow.




I used two part Epoxy and put it all together and let it set in the vice overnight.

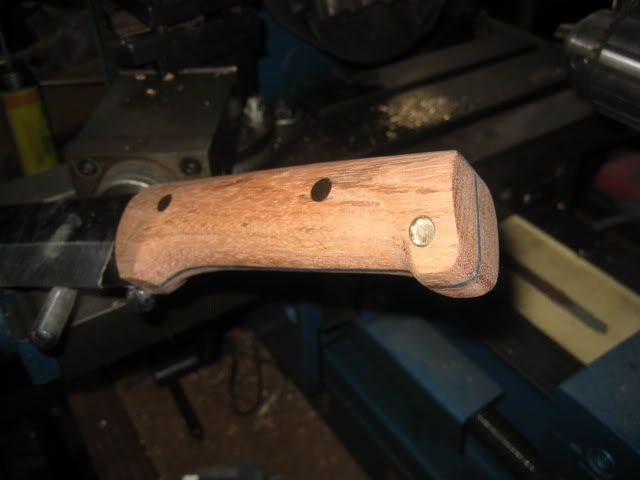

Roughed it down on a belt sander and made the overall width 1”

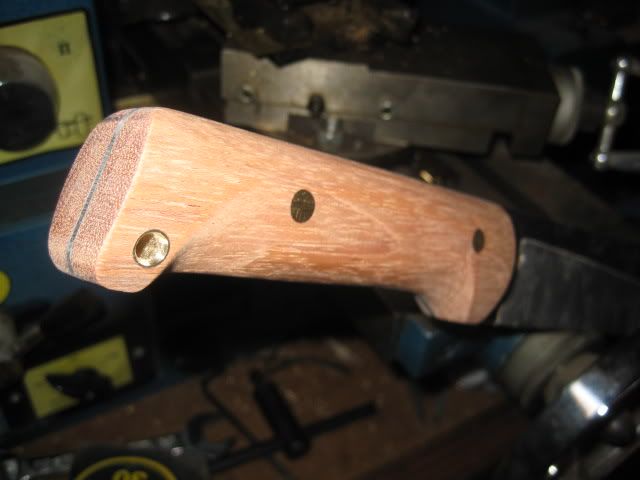

Then I contoured it to fit my hand perfectly using a $35.00 1”x 30” belt grinder from Harbor Freight and sandpaper.

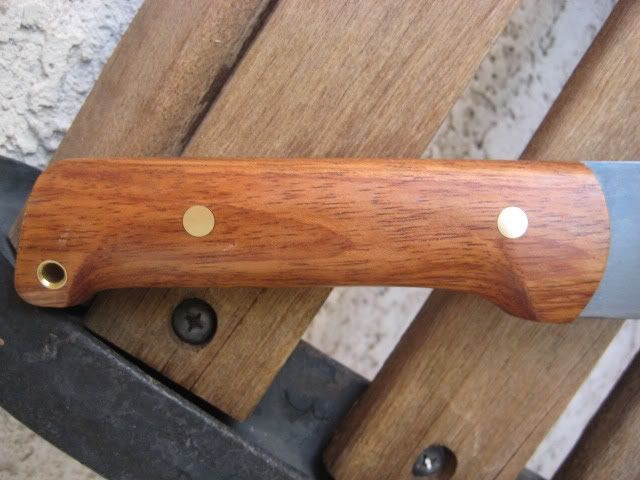

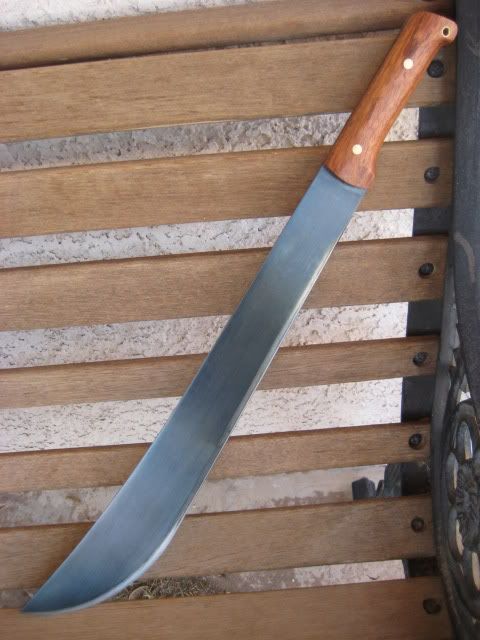

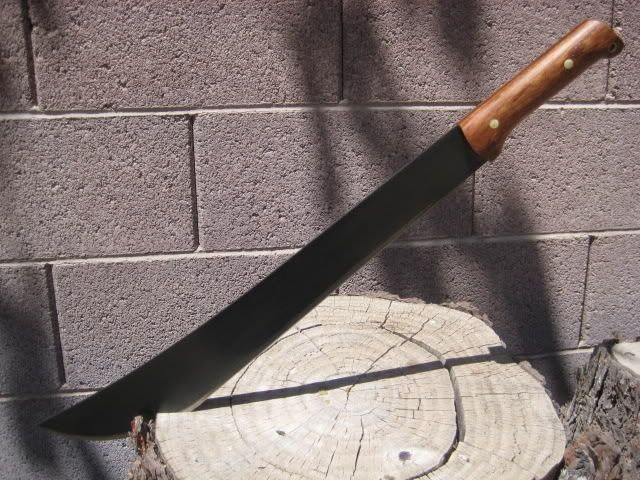

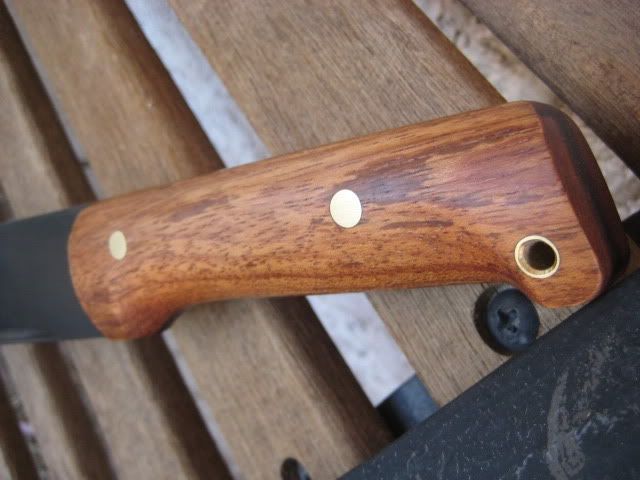

Decided to throw on a few coats of Tru-Oil on the scales, here is the finished Machete.



ScottS


"No arsenal, no weapon in the arsenals of the world, is so formidable as the will and moral courage of free men and women."
-- Ronald Reagan
User avatar
Blaine
Posting leader...
Posts: 30497
Joined: Mon Dec 17, 2007 2:22 pm
Location: Still Deciding

Re: OT - Machete Modifications

Post by Blaine »

WOW! 8)
The Rotten Fruit Always Hits The Ground First

Proud Life Member Of:
NRA
Second Amendment Foundation
Citizens Committee For The Right To Keep And Bear Arms
DAV
iceman
Senior Levergunner
Posts: 1706
Joined: Thu Sep 06, 2007 7:38 pm
Location: Canada

Re: OT - Machete Modifications

Post by iceman »

Looks good.
Happiness is a comfortable stump on a sunny south facing mountain.
User avatar
gamekeeper
Spambot Zapper
Posts: 18093
Joined: Thu Sep 06, 2007 3:32 pm
Location: New Pakistan formally UK.

Re: OT - Machete Modifications

Post by gamekeeper »

Wow! That looks 100% better.... :D

You should make a few doz. and sell 'em. :wink:
Whatever you do always give 100%........... unless you are donating blood.
User avatar
Borregos
Advanced Levergunner
Posts: 4756
Joined: Thu Sep 13, 2007 7:40 am
Location: Ontario, Canada

Re: OT - Machete Modifications

Post by Borregos »

Salvo, that looks real nice, well done :D :D :D
Pete
Sometimes I wonder if it is worthwhile gnawing through the leather straps to get up in the morning..................
salvo
Senior Levergunner
Posts: 1509
Joined: Mon Sep 03, 2007 3:56 pm
Location: Vegas
Contact:

Re: OT - Machete Modifications

Post by salvo »

Thank for the kind words! I really enjoyed this little project. I went by the book store and found a book called "$50 Knife Shop" by Wayne Goddard, hey the price is right:)
I'll let you know what is next!
ScottS


"No arsenal, no weapon in the arsenals of the world, is so formidable as the will and moral courage of free men and women."
-- Ronald Reagan
User avatar
Old No7
Advanced Levergunner
Posts: 3739
Joined: Tue Dec 18, 2007 9:06 pm
Location: Southern Maine

Re: OT - Machete Modifications

Post by Old No7 »

I can see the commercial now...

* (1) Ugly Machete $5.50

* Misc Other Stuff $20.00

* The Satisfaction from doing it yourself... PRICELESS!!!


Nice job -- looks great!

Old No7
"Freedom and the Second Amendment... One cannot exist without the other." © 2000 DTH
User avatar
kimwcook
Advanced Levergunner
Posts: 7978
Joined: Tue Sep 04, 2007 10:01 pm
Location: Soap Lake, WA., U.S.A.

Re: OT - Machete Modifications

Post by kimwcook »

Good job. Warning: It's as addicting as guns.
Old Law Dawg
User avatar
Ysabel Kid
Moderator
Posts: 28611
Joined: Mon Sep 17, 2007 7:10 pm
Location: South Carolina, USA
Contact:

Re: OT - Machete Modifications

Post by Ysabel Kid »

Holy Smokes - that is awesome!!! 8)
rjohns94
Advanced Levergunner
Posts: 10820
Joined: Thu Sep 06, 2007 6:02 pm
Location: York, PA

Re: OT - Machete Modifications

Post by rjohns94 »

thats really nice, well done.
Mike Johnson,

"Only those who will risk going too far, can possibly find out how far one can go." T.S. Eliot
User avatar
TedH
Advanced Levergunner
Posts: 8361
Joined: Tue Apr 03, 2007 5:19 pm
Location: Missouri

Re: OT - Machete Modifications

Post by TedH »

Nice work! 8)
NRA Life Member
User avatar
O.S.O.K.
Advanced Levergunner
Posts: 5533
Joined: Sun Apr 27, 2008 4:15 pm
Location: Deep in the Piney Woods of Mississippi

Re: OT - Machete Modifications

Post by O.S.O.K. »

Looks like somebody already thought of this....


:lol: :lol: :lol:
NRA Endowment Life
Phi Kappa Sigma, Alpha Phi 83 "Skulls"
OCS, 120th MP Battalion, MSSG
MOLON LABE!
User avatar
crs
Advanced Levergunner
Posts: 3154
Joined: Thu Sep 06, 2007 10:32 am
Location: Republic of Texas
Contact:

Re: OT - Machete Modifications

Post by crs »

Very nice.
CRS, NRA Benefactor Member, TSRA, DRSS, DWWC, Whittington Center
Android Ballistics App at http://www.xplat.net/
User avatar
JReed
Advanced Levergunner
Posts: 5509
Joined: Tue Apr 03, 2007 11:17 am
Location: SoCal

Re: OT - Machete Modifications

Post by JReed »

Looking good. :D
Jeremy
GySgt USMC Ret

To err is human, To forgive is devine, Neither of which is Marine Corps policy
Semper Fidelis
salvo
Senior Levergunner
Posts: 1509
Joined: Mon Sep 03, 2007 3:56 pm
Location: Vegas
Contact:

Re: OT - Machete Modifications

Post by salvo »

Thanks guys,
Jeremy have you read the book $50 Knife Shop? He's got what he call's a one brick forge! Pretty usefull and simple, I'm going to make one.
ScottS


"No arsenal, no weapon in the arsenals of the world, is so formidable as the will and moral courage of free men and women."
-- Ronald Reagan
User avatar
JReed
Advanced Levergunner
Posts: 5509
Joined: Tue Apr 03, 2007 11:17 am
Location: SoCal

Re: OT - Machete Modifications

Post by JReed »

No I haven't this is the first I have heard of it. How did you come across it?
Jeremy
GySgt USMC Ret

To err is human, To forgive is devine, Neither of which is Marine Corps policy
Semper Fidelis
salvo
Senior Levergunner
Posts: 1509
Joined: Mon Sep 03, 2007 3:56 pm
Location: Vegas
Contact:

Re: OT - Machete Modifications

Post by salvo »

I just found it at Barnes & Nobles yesterday. Here's a better price at Amazon.

http://www.amazon.com/gp/aw/d.html/ref= ... 0896892956
ScottS


"No arsenal, no weapon in the arsenals of the world, is so formidable as the will and moral courage of free men and women."
-- Ronald Reagan
Hagler
Senior Levergunner
Posts: 1523
Joined: Sun Apr 15, 2007 12:52 am
Location: Leverland, U.S.A.
Contact:

Re: OT - Machete Modifications

Post by Hagler »

salvo,

Your machette looks good. :D

"The $50.00 Knife Shop" is now on my list. Here is a Google preview of the book:

http://books.google.com/books?id=4neKA7 ... &q&f=false

Shawn
"That's right, Billy, I'm good with it. I hit what I shoot at, and I'm fast!"-Lucas McCain, c1882.
adirondakjack
Senior Levergunner
Posts: 1925
Joined: Mon Dec 17, 2007 7:09 pm
Location: Upstate NY
Contact:

Re: OT - Machete Modifications

Post by adirondakjack »

Nice work.

I've done a few similar jobs. AAMOF your post reminded me of a blade I had all dolled up and plum browned a while back, and had cut some scale stock from maple out of my firewood pile and brought em in to dry fully. They are dry, so now I gotta finish it.
Certified gun nut
Lawyer Daggit
Levergunner 3.0
Posts: 519
Joined: Sun Jan 31, 2010 4:38 pm

Re: OT - Machete Modifications

Post by Lawyer Daggit »

Congratulations on turning a pedestrian item into a nice bit of kit to be proud of.
20cows
Advanced Levergunner
Posts: 2278
Joined: Tue Apr 03, 2007 9:55 pm
Location: East West Texas

Re: OT - Machete Modifications

Post by 20cows »

I have a lathe and a Harbor Freight not too far off.

Hmmmm.


Nice work!
Last edited by 20cows on Tue May 25, 2010 5:15 pm, edited 1 time in total.
JohnM
Levergunner
Posts: 31
Joined: Sun Sep 07, 2008 7:43 pm

Re: OT - Machete Modifications

Post by JohnM »

You have a good eye for design and obvious skills. Keep after this knife biz, and post the results of further projects. They'll be appreciated here, f'shure.
salvo
Senior Levergunner
Posts: 1509
Joined: Mon Sep 03, 2007 3:56 pm
Location: Vegas
Contact:

Re: OT - Machete Modifications

Post by salvo »

Thanks!
Can't wait to see your projects adirondakjack and 20cows.
ScottS


"No arsenal, no weapon in the arsenals of the world, is so formidable as the will and moral courage of free men and women."
-- Ronald Reagan
revolvergeek
Levergunner
Posts: 35
Joined: Thu Jan 07, 2010 3:15 pm

Re: OT - Machete Modifications

Post by revolvergeek »

Very nice work! Looks like a huge improvement over the original.
